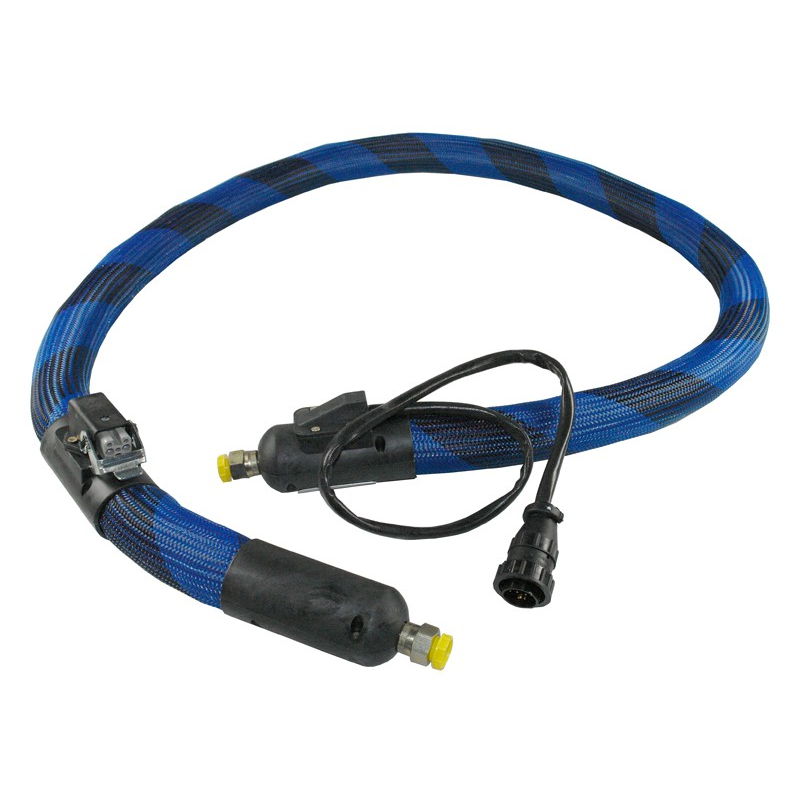

Heated Hoses for Application Head PT 100 / Spray
Heated Hose for the HB 4000, HB 5000 and HB 6000 bulk tank systems series
standard length: 1,2 / 1,5 / 1,8 / 2,4 / 3,0 / 4,5 / 6,0m
custom sizes available
Spray Yes
Operating Voltage 231 V AC / 50-60 Hz
Power consumption 70 W - 800 W
Temperature sensors PT 100
Operating temperature 200°C / 250°C HT
Nominal diameter DN 6 - 26
Outer protective meshwork Polyamid / Wellschlauch / Metall
Thermal insulation Silikonschaumschlauch / Filz
Pressure hose PTFE Seele mit Metall
Operating pressure 80 - 240 bar
Connection fittings UNF-Gewinde
Bending radius 75 - 250 mm
Integrated spray air duct Yes
Heated hose end caps Silikon / Hartkappe
Electrical plugs on request
