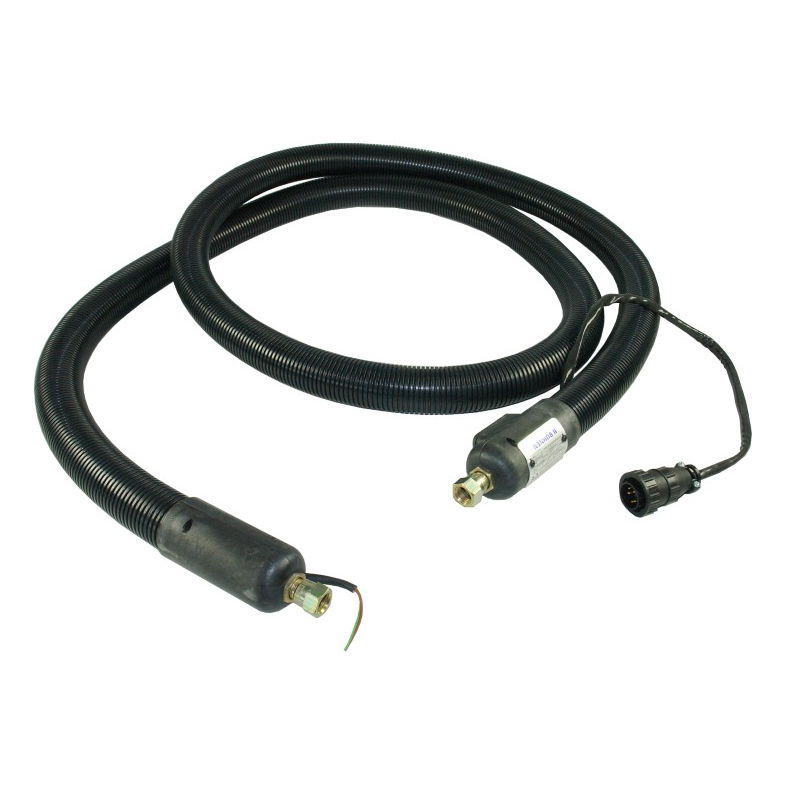

Heated Hoses for Handguns PT 100
Heated Hose for the HB 4000, HB 5000 and HB 6000 bulk tank systems series
standard length: 1,2 / 1,5 / 1,8 / 2,4 / 3,0 / 4,5 / 6,0m
custom sizes available
Spray No
Operating Voltage 244 V AC / 50-60 Hz
Power consumption 70 W - 800 W
Temperature sensors PT 100
Operating temperature 200°C / 250°C HT
Nominal diameter DN 6 - 10
Outer protective meshwork Polyamid / Wellschlauch
Thermal insulation Silikonschaumschlauch / Filz
Pressure hose PTFE Seele mit Metall
Operating pressure 175 - 240 bar
Connection fittings UNF 9/16-18
Bending radius 75 - 250 mm
Integrated spray air duct No
Heated hose end caps Silikon / Hartkappe
Electrical plugs on request
