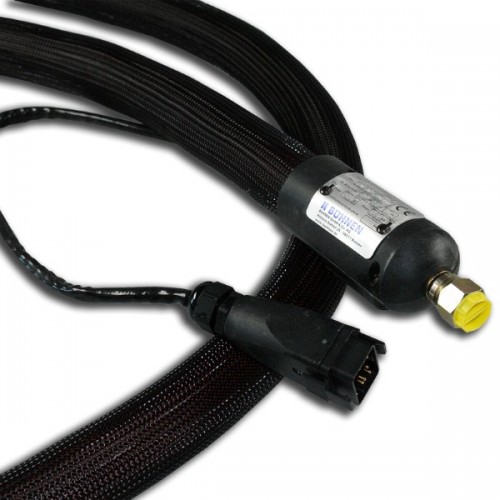

ITW Dynatec - Heated Hose DY 1,2m NW06 EU
Heated Hose for ITW-Dynatec bulk tank systems
standard length: 1,2 / 1,5 / 1,8 / 2,4 / 3,0 / 4,5 / 6,0m
custom sizes available
Spray Yes
Operating Voltage 298 V AC / 50-60 Hz
Power consumption 70 W - 800 W
Temperature sensors on request
Operating temperature 200°C / 250°C HT
Nominal diameter NW 06
Outer protective meshwork on request
Thermal insulation Silikonschaumschlauch / Filz
Pressure hose PTFE Seele mit Metall
Operating pressure 160 bar
Connection fittings on request
Bending radius 75 - 250 mm
Integrated spray air duct optional
Heated hose end caps Silikon / Hartkappe
Electrical plugs on request
